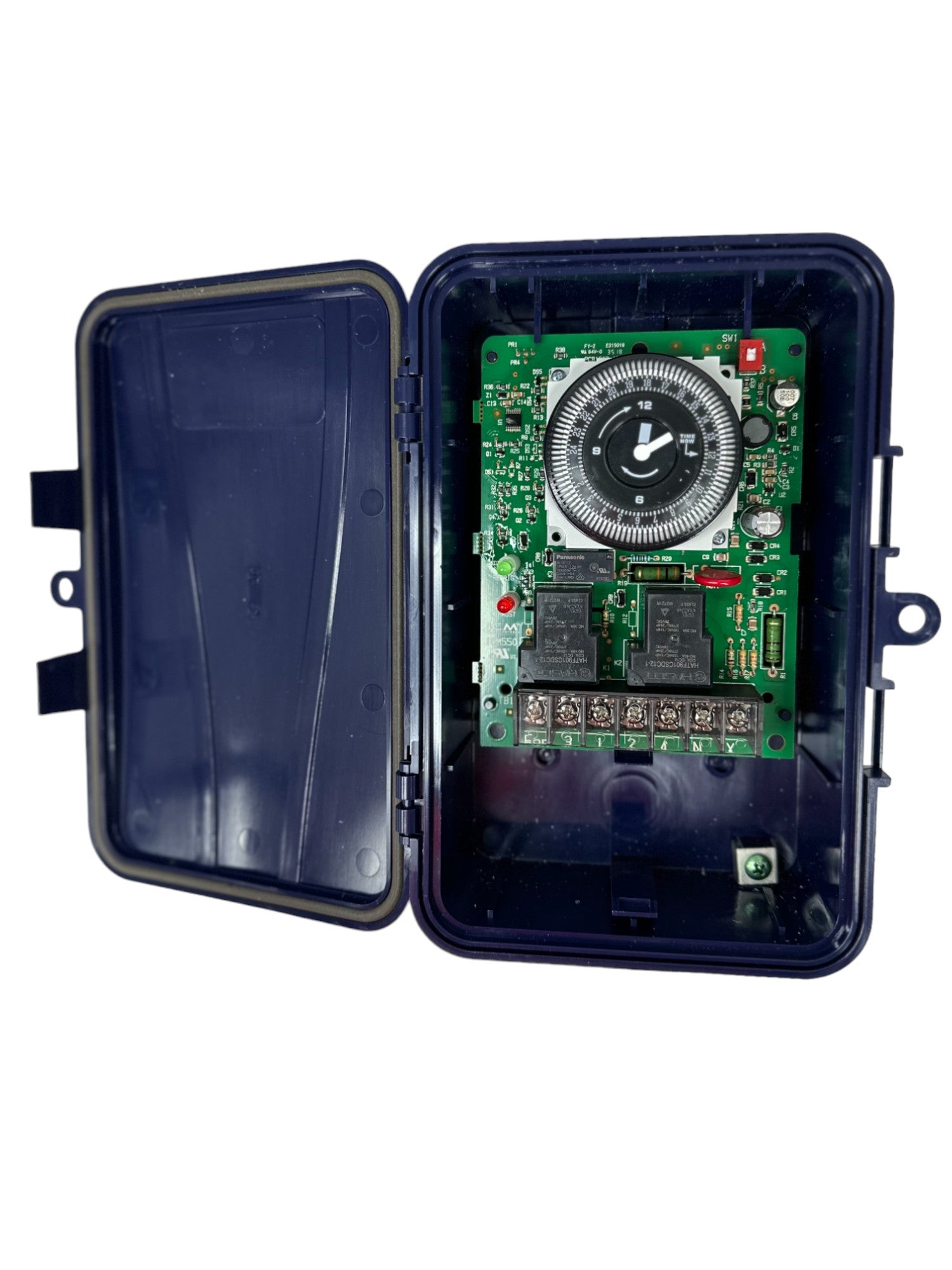

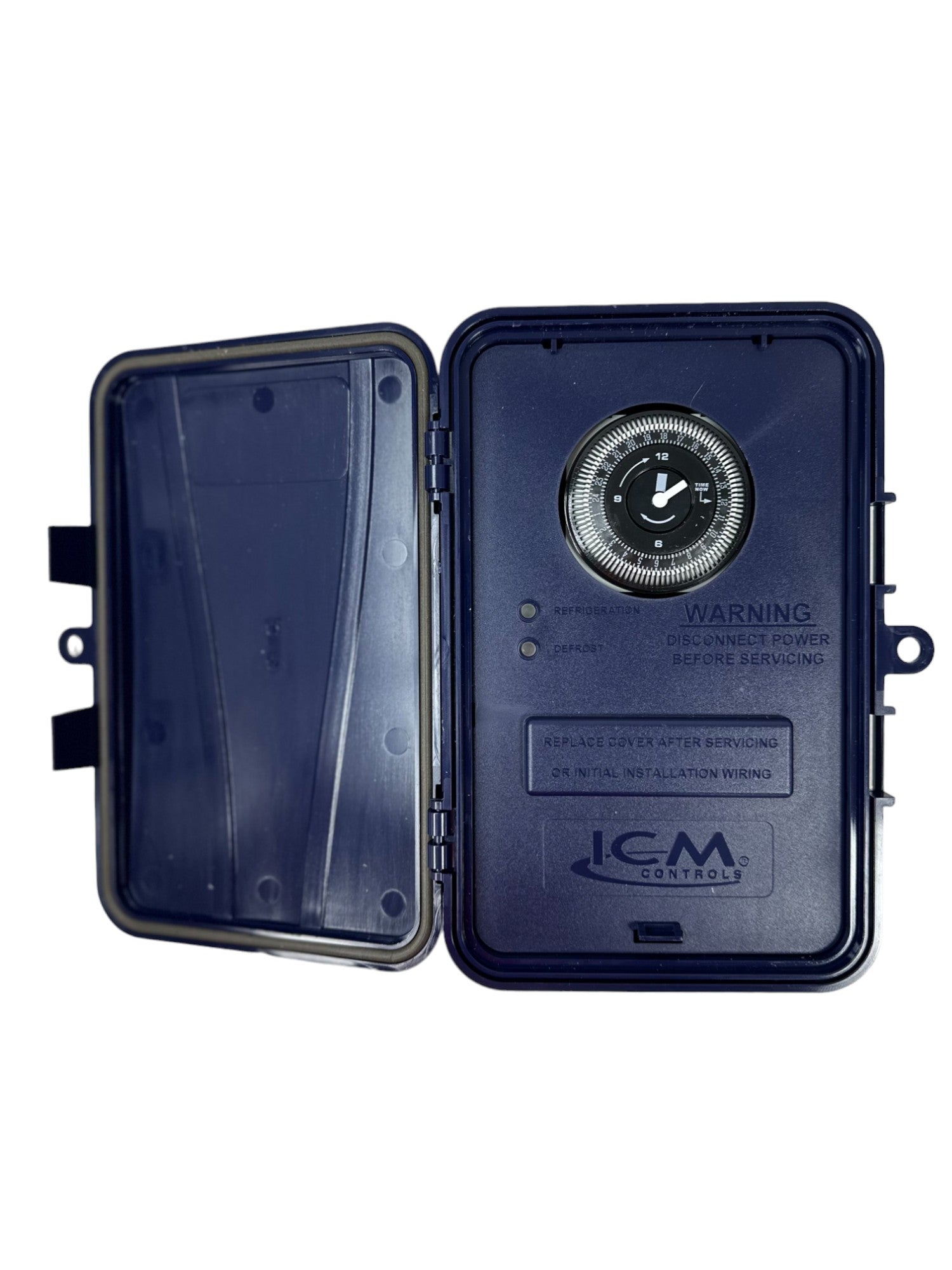

ICM - ICM550-ENC Defrost Controls, Enclosure, Multi-Functional Timer, Time Delay Relay Featured

$102.00

$102.00


When Mode B is selected and the unit is in the timed cycle (clock dip switches in the on position), the load will be turned on with the back up source. At the end of the timed cycle, the unit will return to normal operation until the next preset interval occurs.

If Mode A is selected, the load is off during the timed cycle and the back up source will be on. At the end of the timed cycle, the unit will return to normal operation until the next preset interval occurs.

  • Timed or manual termination
  • Adjustable 15 min to 23 hours 45 min defrost cycle
  • High power relay outputs
  • 100% monitoring of inputs and outputs
  • Simple to use, drag & drop replacement for popular models
  • User-friendly time clock
  • Rugged, NEMA/TYPE 4X rated plastic, weatherproof enclosure
  • Easy to mount and lockable
  • Helps to protect controls from harsh environmental conditions such as temperature, shock, humidity and vibration

SPECIFICATIONS

ELECTRICAL RATING
Voltage: 120-240VAC
Frequency: 60 Hz




OUTPUT
Type: Relay
Form: SPDT, SPST
Rating:
  • [2] & [4]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC
  • [1] & [3]: 40A R, 1HP @ 120 VAC, 2HP @ 240 VAC
  • [1] & [F]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC



TIMING
Minimum cycle time: 15 min
Maximum cycle time: 23 hr 45 min
Terminate cycle: Cycle can be terminated by shorting “X to N”




STATUS LED
Cycle mode: (Red LED)
Normal mode: (Green LED)
