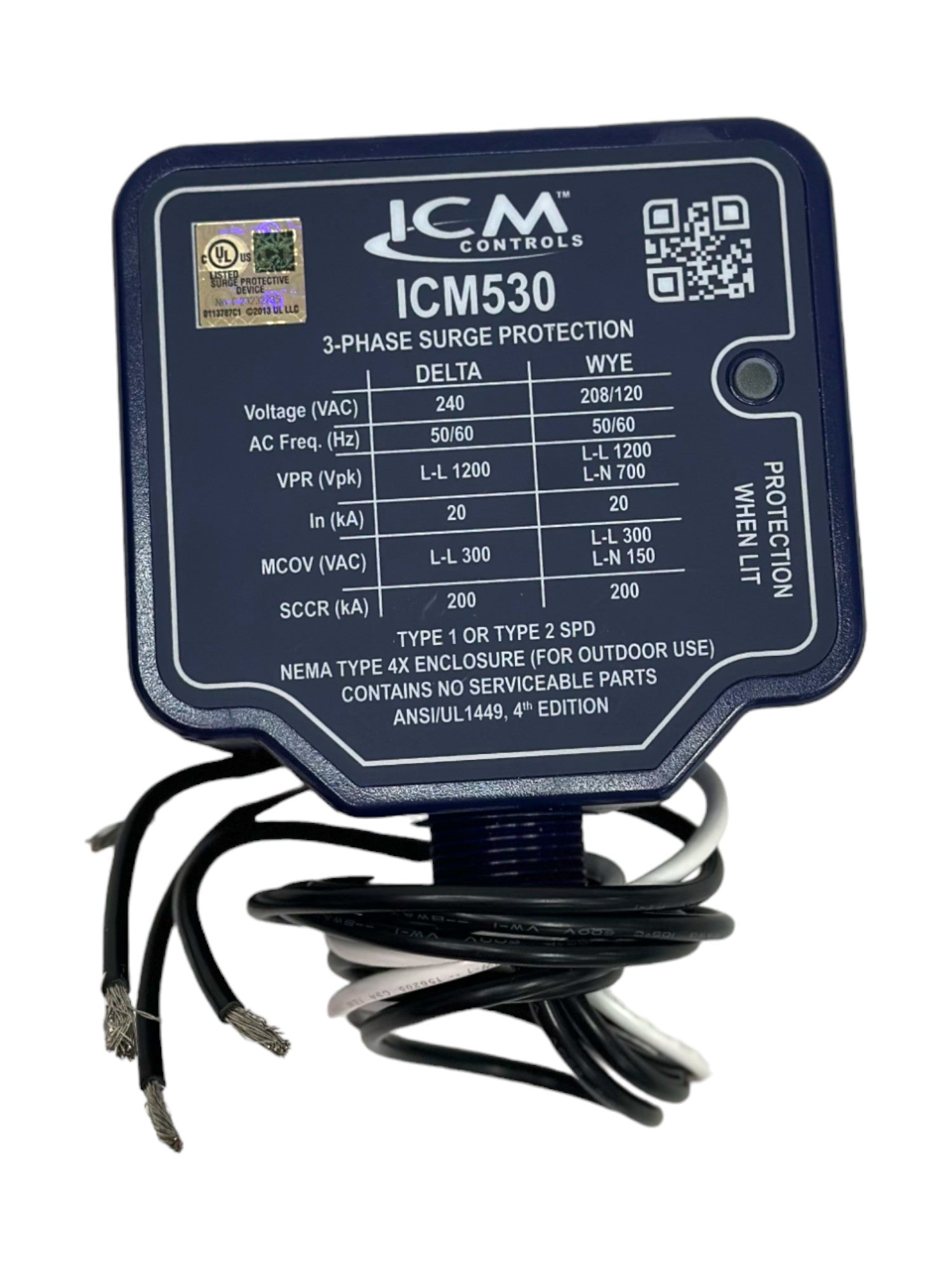

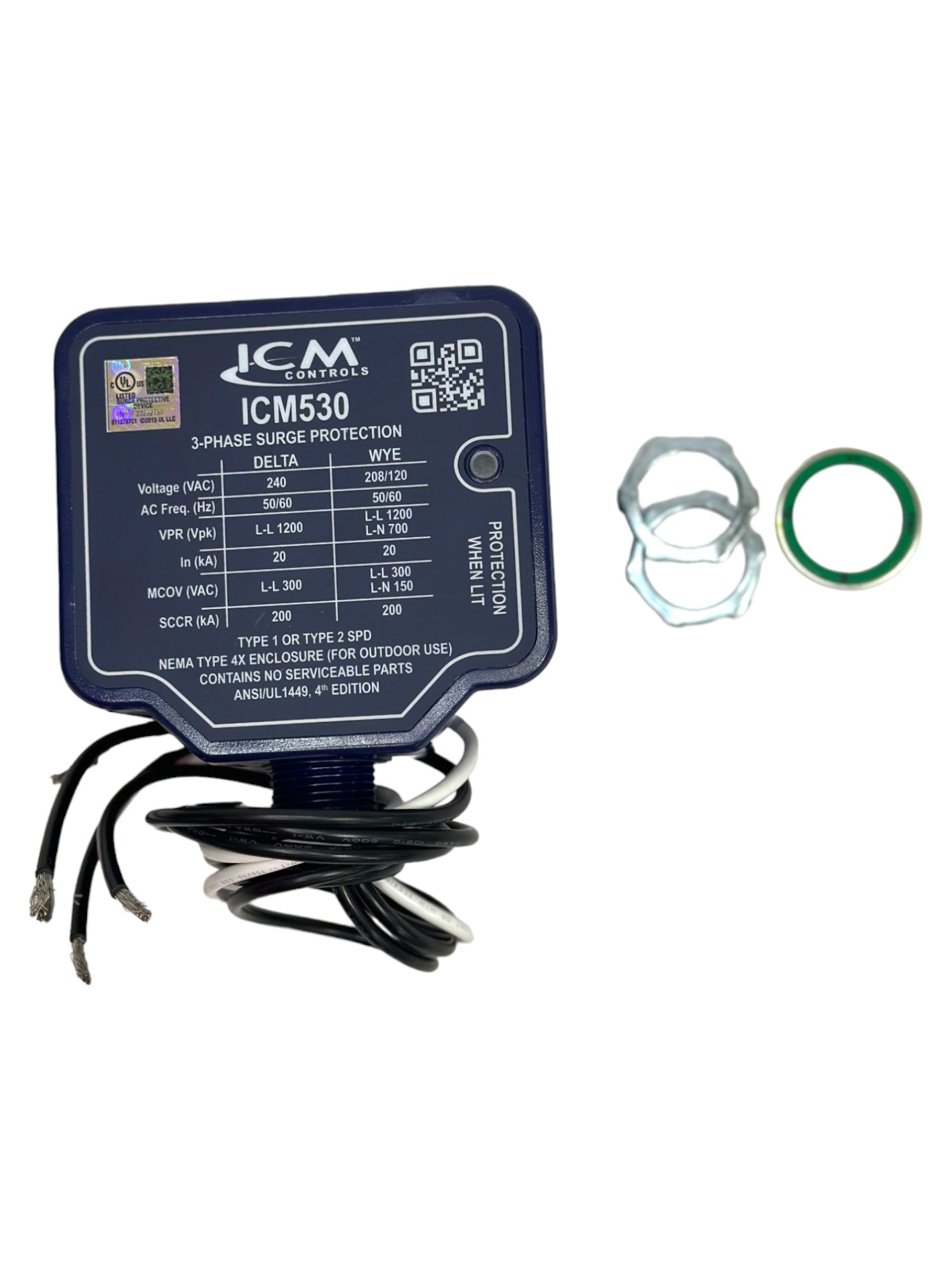

The ICM530 Series is 4 models of Type 1 and Type 2 three-phase Surge Protective Devices for three-phase Delta and three-phase Wye configurations.
When a surge occurs, the ICM three-phase surge suppressor will absorb the surge up to the specified limitations of the device. ICM incorporates superior thermally protected metal oxide varistor technology into the three-phase surge suppressors, which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. There is a single status light on the controls which identifies operational status when illuminated.
The ICM 3-phase surge suppressors can be installed as a Type 1 or Type 2 device for both indoor and outdoor applications.
3-Phase Surge Protective Device, Delta 240VAC or Wye 120/208VAC
- Delta or Wye Configuration
- NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
- Green LED indicates surge protection present
- Easily connects to electrical panel or disconnect for indoor and outdoor applications
- UL Listed Type 1 or Type 2 SPD
- Limited lifetime product, up to a 3-year $10,000 connected equipment warranty
SPECIFICATIONS
Service Voltage (3-Phase): 240 VAC Delta or 120/208 VAC Wye
Short Circuit Current Rating (SCCR): 200 kA
Nominal Discharge Current (In): 20kA
Maximum Surge Current: 150,000 amps
Protection Mode:
3 for Delta configuration
6 for Wye configuration (neutral tied to ground)
Maximum Continuous Operation Voltage (MCOV):
L-L: 300 VAC
L-N: (for Wye configuration only): 150 VAC
VPR:
Delta L-L: 1200 VAC
Wye L-L: 1200 VAC
Wye L-N: 700 VAC
SPD Type: Type 1 (can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Input Power Frequency: 50/60 Hz
