ICM Controls

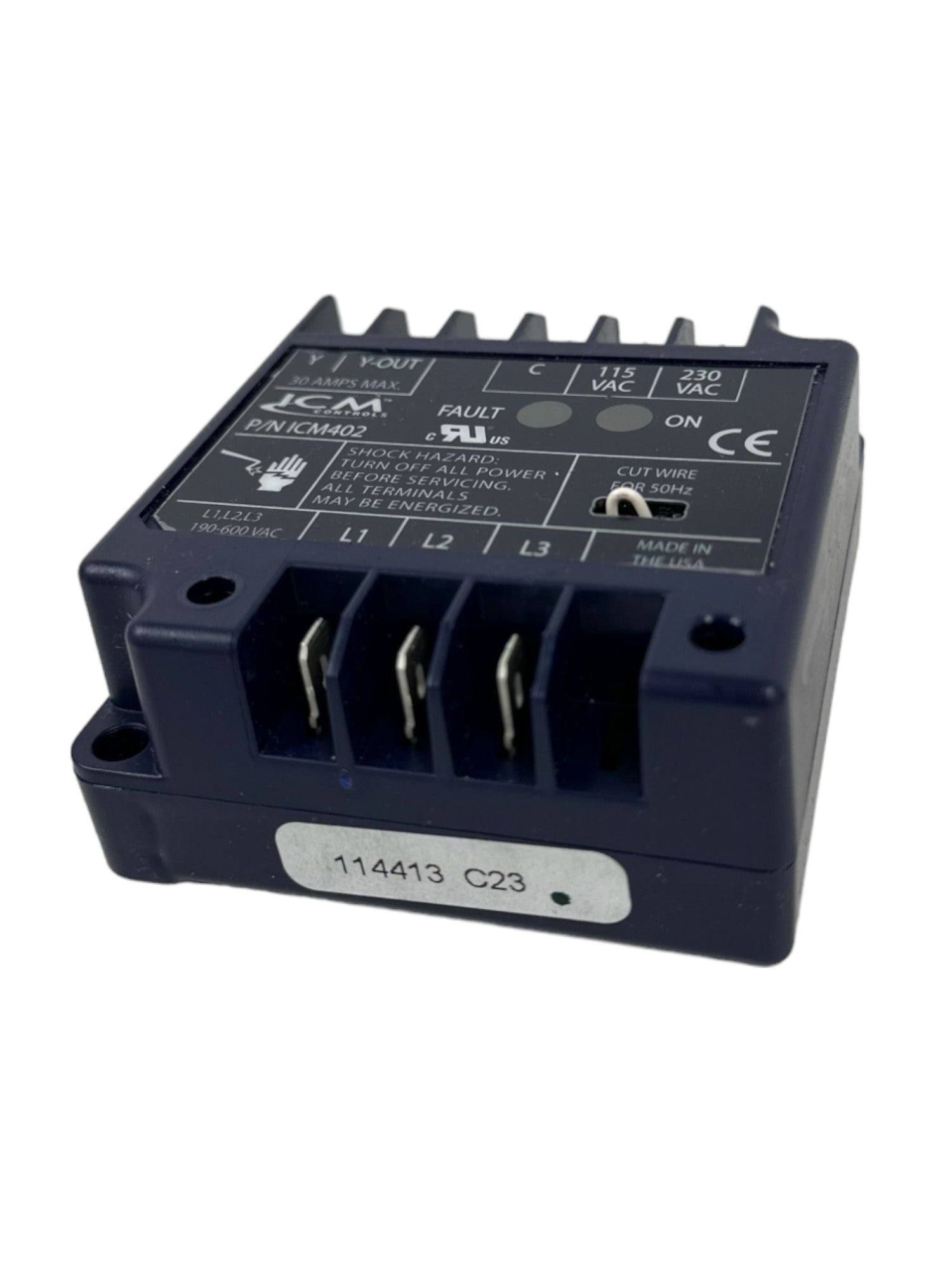

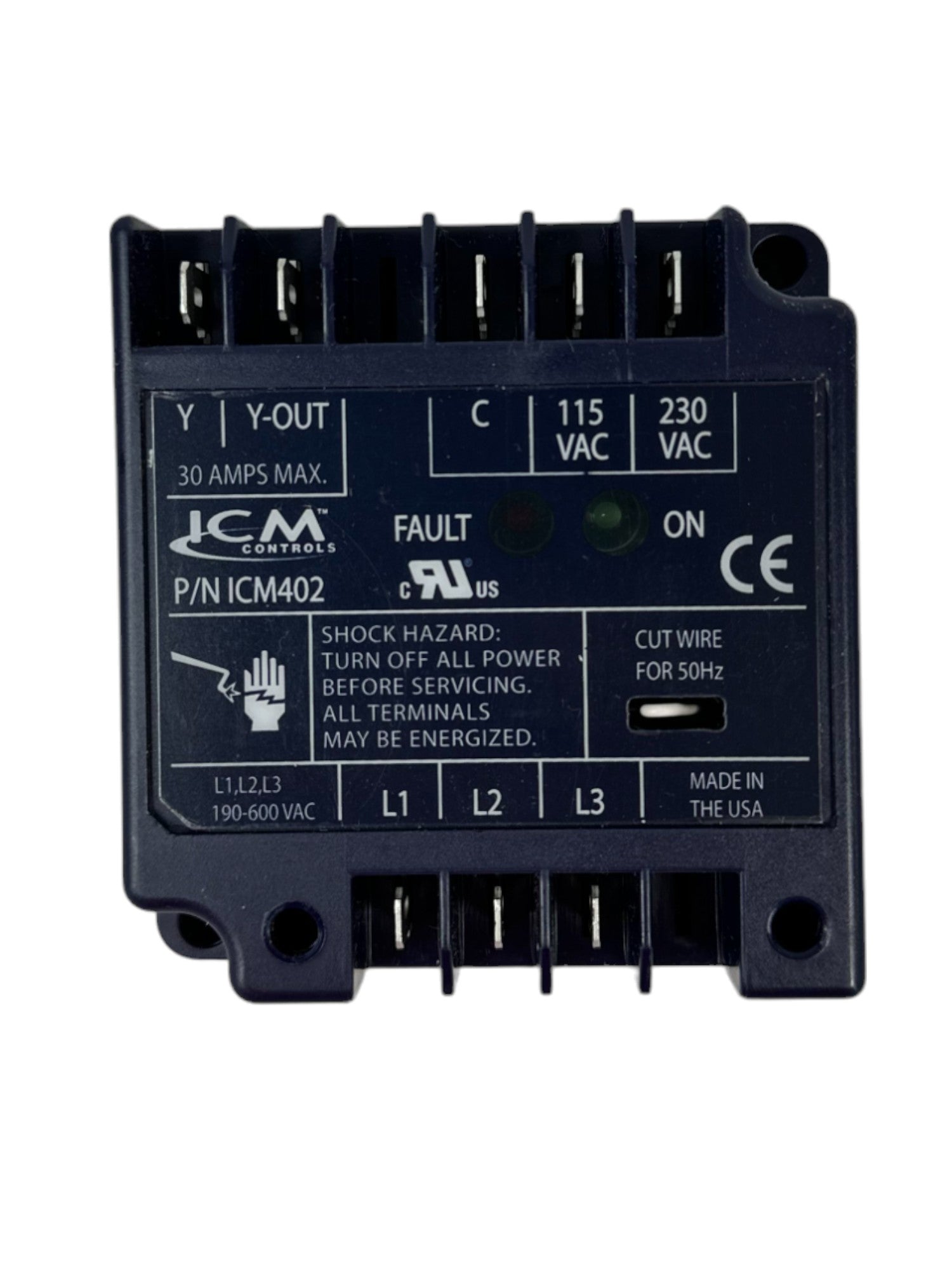

ICM - ICM402C Three-Phase Line Voltage Monitor Offering Protection Against Phase Loss/Reversal and Unbalance
$57.80
$57.80
Low cost 3-phase equipment protection. Monitors for phase reversal, phase loss, phase unbalance.
Three-phase line voltage monitor offering protection against phase loss/reversal and unbalance; 50/60 Hz, 190-600 VAC (115 or 208/230 control VAC)
- Low cost 3-phase protection for single side
- Monitors for phase reversal, phase loss, unbalance % as a function of input voltage
- Bright LED indicators for ON and FAULT
- Universal 3-phase input: 190-600 VAC
- Control voltage input: 115, 208/230 VAC
- Epoxy encapsulated for moisture protection
SPECIFICATIONS
Voltage: 190-600 VAC
Frequency: 50/60 Hz
Control: 115 or 208/230 VAC
Output:
– Relay, SPDT
– N.O. 30 amps
– Relay, SPDT
– N.O. 30 amps
