ICM Controls

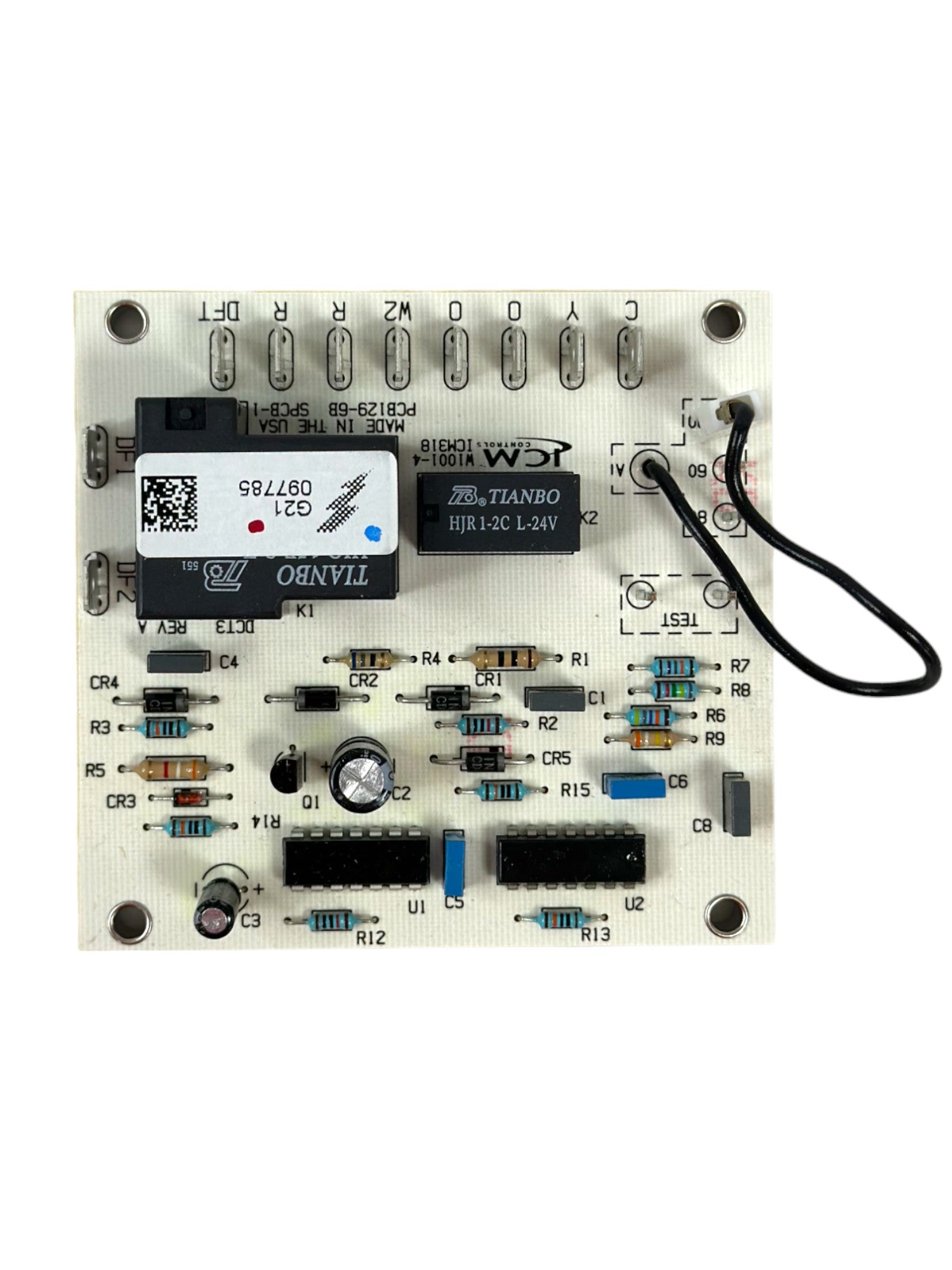

ICM - ICM318C Goodman OEM Replacement Board
$62.00
$62.00
- Replacement for Goodman B1226008 and PCBDM101(s)
- Low cost, time and temperature terminated defrost
- Test pins reduce test time by 256X
- High power output contact (1/2 HP @ 240 VAC)
- Strip heat, reversing valve outputs (24 VAC, 1 amp)
- Hold feature accumulates compressor run time
SPECIFICATIONS
Voltage: 24, 120, 240 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output:1/2 HP @ 240 VAC
Strip Heat, Reversing Valve Outputs: 24 Vac, 1 amp
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/80 min
