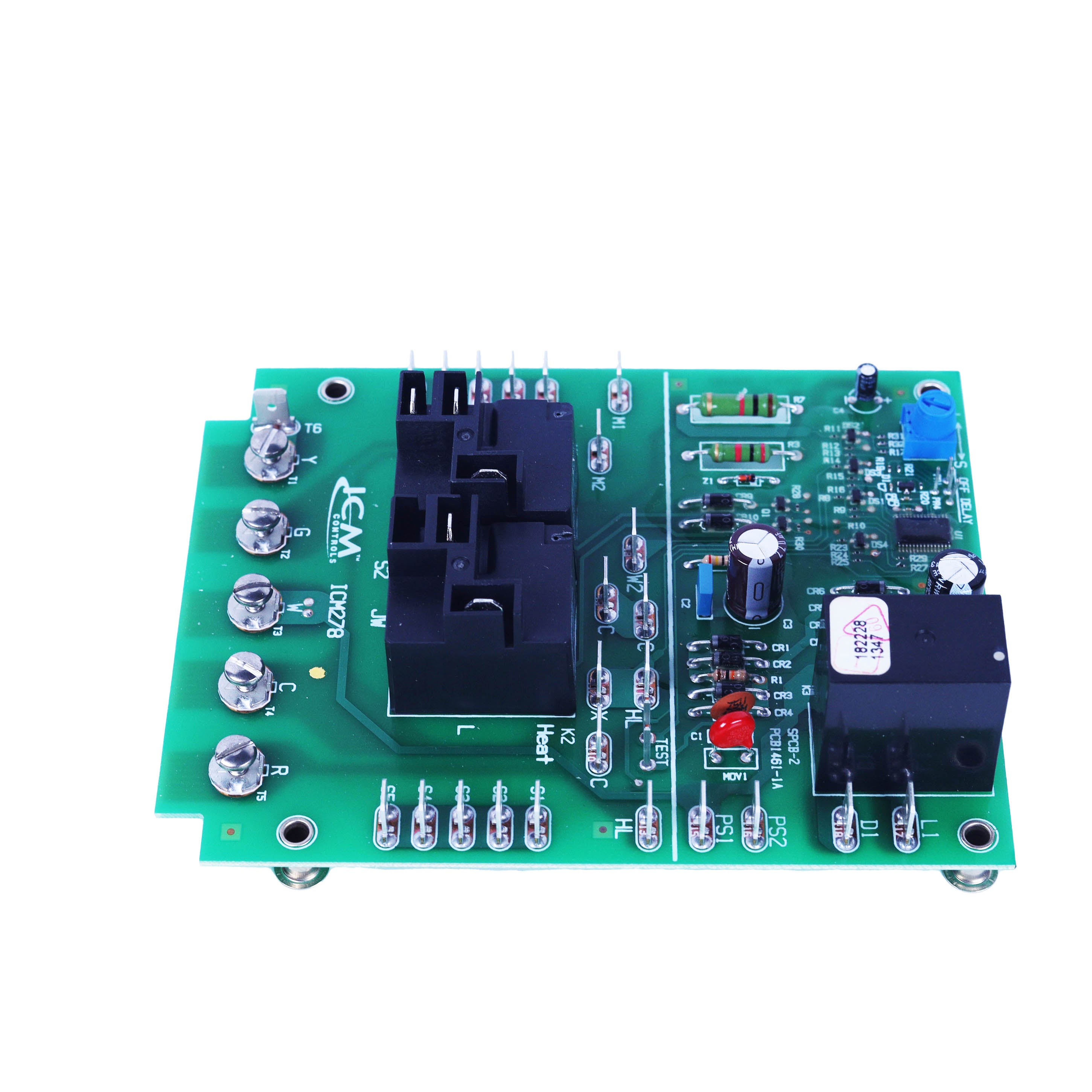

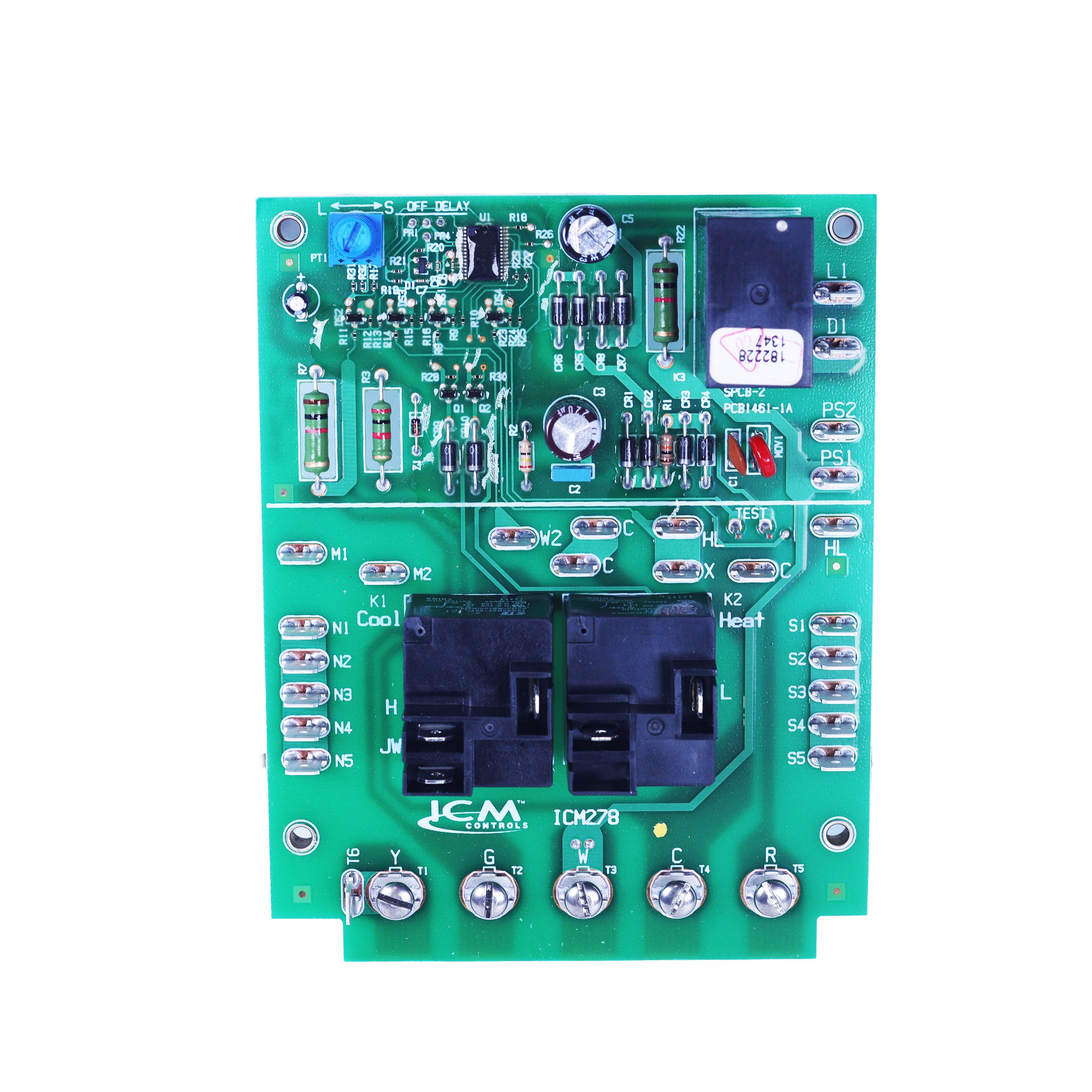

ICM278C - Fan Blower Control for Carrier
The ICM278 Fan Blower Control is a low cost replacement for both the Carrier HH84AA017 and HH84AA018 (replaces both boards together).
Product Features
- Controls blower motor and inducer
- Combines functionality of two boards into one
- Microprocessor-based precision
- Adjustable blower off delay
- Compatible with 24 VAC standard thermostat
- Input Voltage: Terminals:
- 120/240 VAC: N1-N5, S1-S5, H, L, L1, D1
- 18-30 VAC: Y, G, W, C, R, W2, X, HL, PS1, PS2
- Line Frequency: 60 Hz
- Operating Temperature: 40ºF to +176ºF
- Maximum Operating Humidity: 95% R.H.Non-condensing @ 50ºC
- Time Delays: - Heat ON: 60 Seconds
- Heat OFF: 60-200 Seconds
- Cool OFF: 40 Seconds
