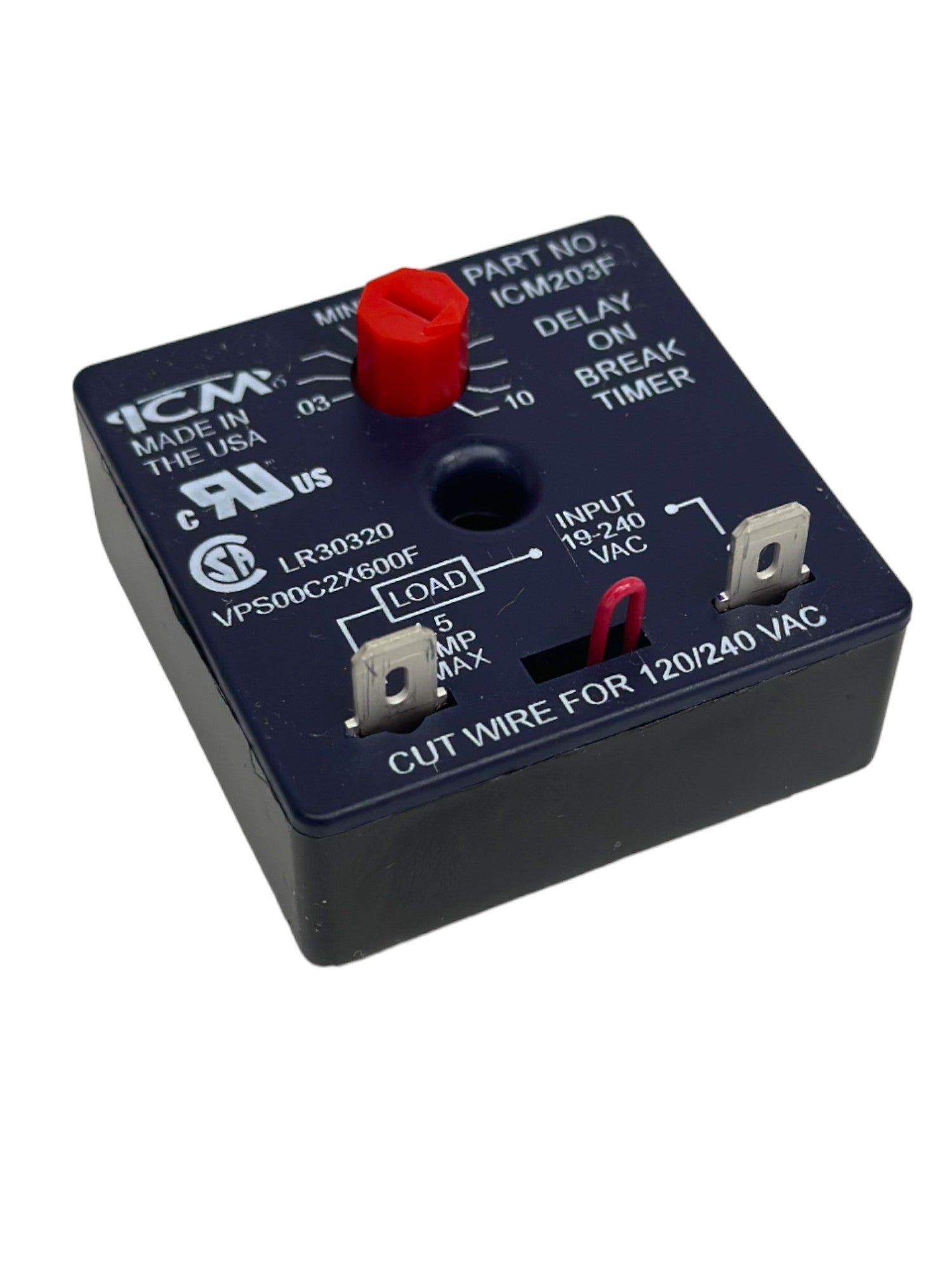

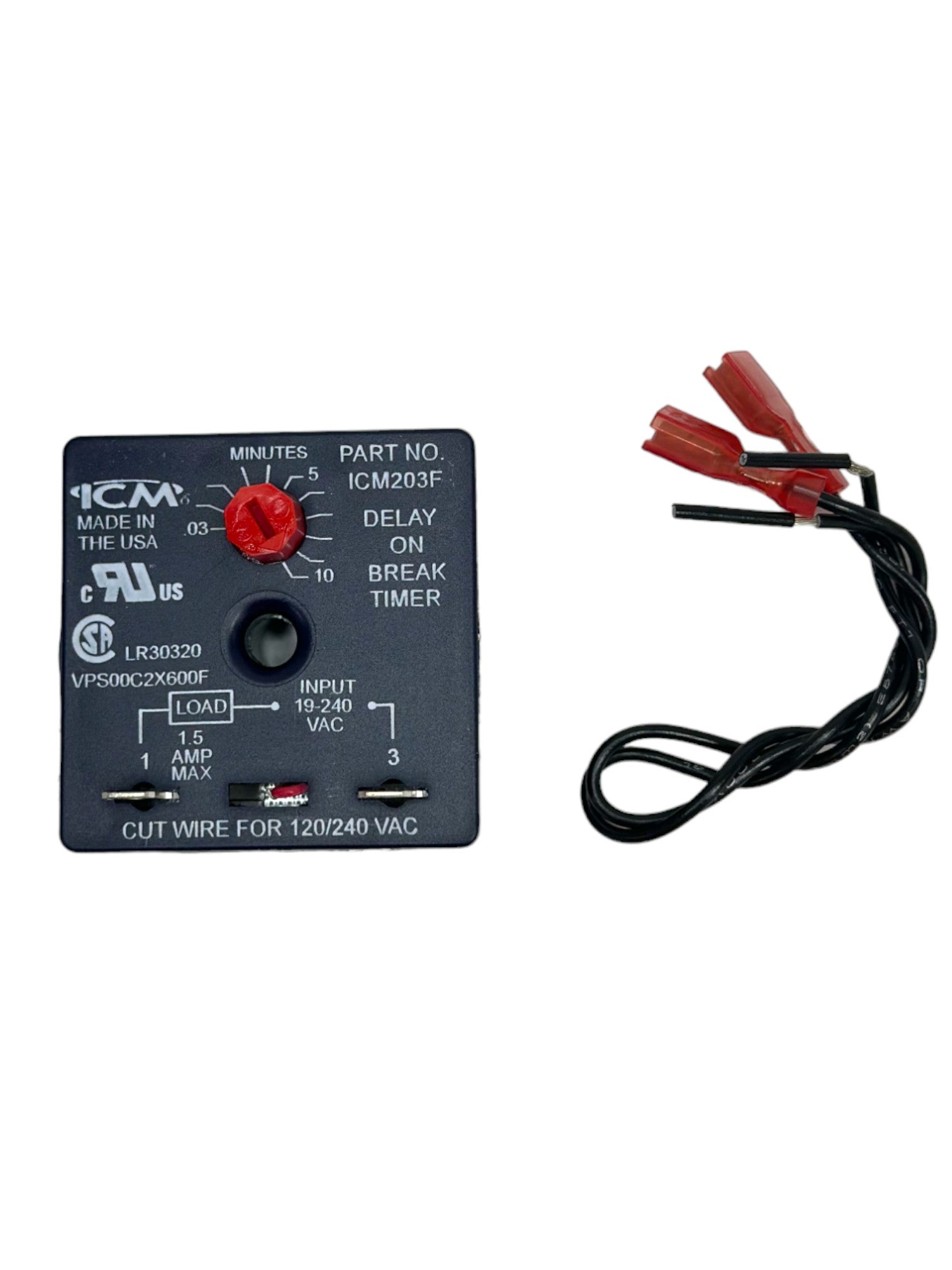

ICM - ICM203FB Delay On Break Relays (DOB), Time Delay Relays
$25.00
$25.00
Delay On Break Relays
Upon application of power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is deenergized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
SPECIFICATIONS
INPUT
Voltage:
18-240 VAC
1.5 amp
15 amp in-rush
Knob-Adjustable Time Delay:
.03-10 minutes (1.8-600 seconds)
