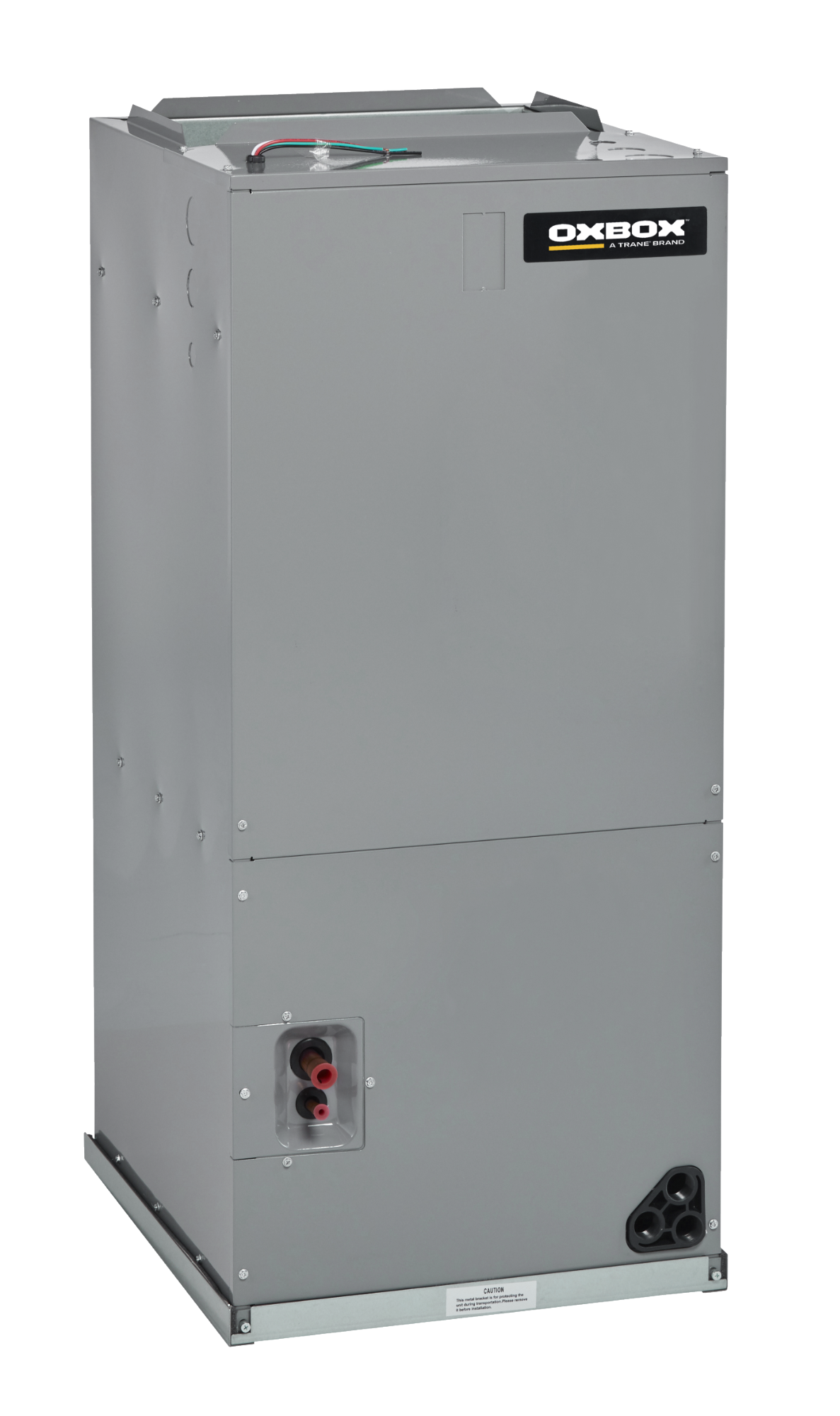

Oxbox (A Trane Brand) - J4AH4P36 - 3 Ton Air Handler

$1,175.00

$1,175.00


J4AH4P36E1B00A

The Oxbox air handler is designed to supplement your air conditioner or heat pump by circulating cooled or heated air throughout your home. The air handler offers flexible installation options with its multi-position airflow design. An all-aluminum coil provides efficient heat transfer while its painted galvanized steel cabinet resist rust over years of use.
    • All-aluminum Coil
    • The Oxbox air handler includes an all-aluminum coil for advanced heat transfer and efficiency.
    • Durable Cabinet
    • Oxbox air handlers include a painted, galvanized steel cabinet to resist rust and retain peak efficiency.
    • Dual Drainage
    • For increased installation flexibility, the Oxbox air handler features two drainage spouts.
    • Easy Access
    • Oxbox air handlers feature removable front panel and blower and coil assemblies for simple maintenance and troubleshooting.
Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
  •


    General Information



    Refrigerant Type

    R-410A

    Blower Motor Type

    Variable Speed

    Configuration

    Multi-Position

    Capacity (Cooling)

    3 Tons (36,000 BTU)

    Maximum Air Flow

    1532 CFM

    Voltage

    208-230 Volts

    Phase

    Single Phase

    Hertz

    60Hz


    Dimensions



    Suction Connection Size

    3/4 Inch

    Liquid Connection Size

    3/8 Inch

    Product Height

    46 1/2 Inches

    Product Width

    19 5/8 Inches

    Product Depth

    21 5/8 Inches

    Product Weight

    125 Lbs.
