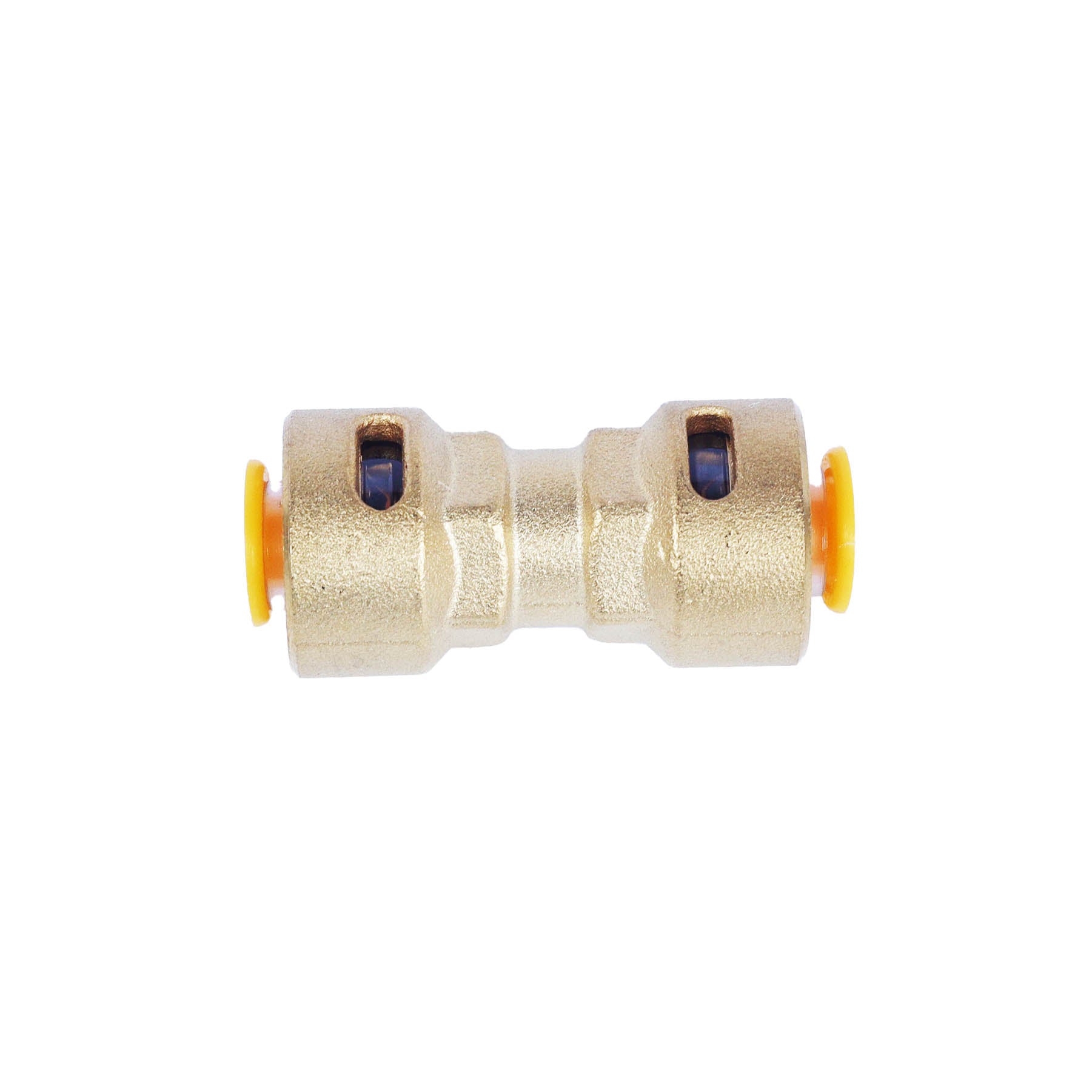

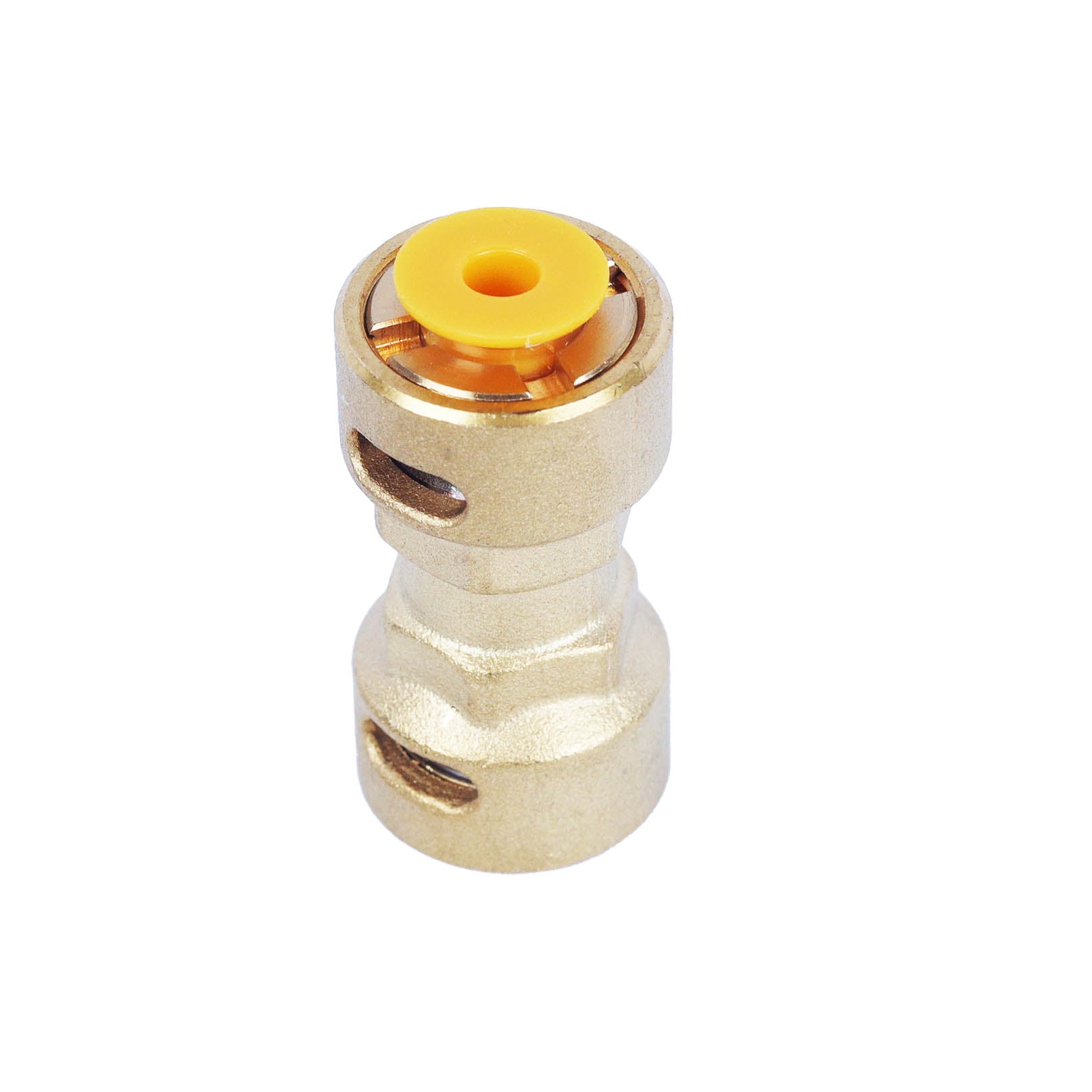

SBC38 Supco Coupling
Supco SBC38 3/8" Coupling, Solder Free
SB1 Series Quick Connect Refrigerant Fittings are FLAME FREE, Tool FREE and Problem FREE! /they are available as couplers, (45 & 90°) elbows and flares for 1/4" to 7/8" copper tubing. No brazing, tools or nitrogen purge needed for installation.
Features and Benefits:
- Approved for Hard Drawn Copper: 1/4" - 7/8" Type ACR, M, L, K
- Approved for Hard Soft Copper (Annealed): 1/4" - 7/8" Type ACR, L, K
- Approved Refrigerants - R134a, R404A, R290, R407A, R600a, R507, R22, R410A, R32, R407C, R448A, R449A, R454B, R500, R1234yf, R1234ze
- C3771 Brass Body
- UL Listed 207, SA #44910 SDTW(7)
- Vibration Resistant Rating UL 1963
Specifications
| Continuous Operating Temperature: | 250°F / 121°C |
| O-Ring Temperature: | -40°F / 250°F (-40°C / 121°C) |
| Maximum Rated Pressure (MRP): | 870 PSI / 60 Bar |
| Minimum Burst Pressure : | 3600 PSI / 250 Bar |
| Vacuum Pressure Capability: | 30 Microns |
| Compatibility-Tubing Tolerance: | ASTM B280, UNI EN 12735 |
| Fitting Material: | C3771, Polycarbonate |
| O-Ring Material: | Chloroprene |
| Connection Size (Inch): | .375 |
| Length (Inch): | 1.969 |
| Outside Diameter (Inch): | 0.945 |
| Connection Thread: | None |
