Packard
PDCF10 Packard Capacitor
$5.50
$5.50
Dry AC Motor Run Capacitor 10 MFD 440 Volts

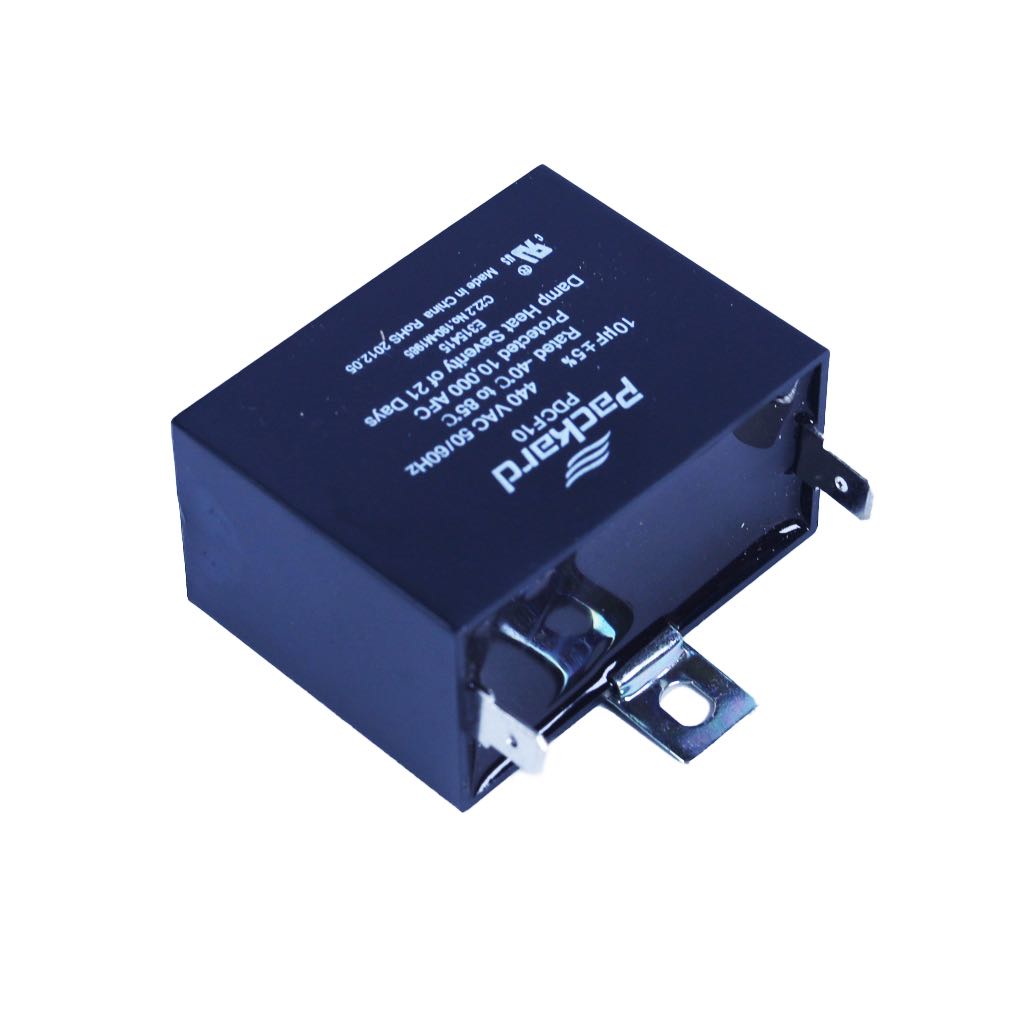

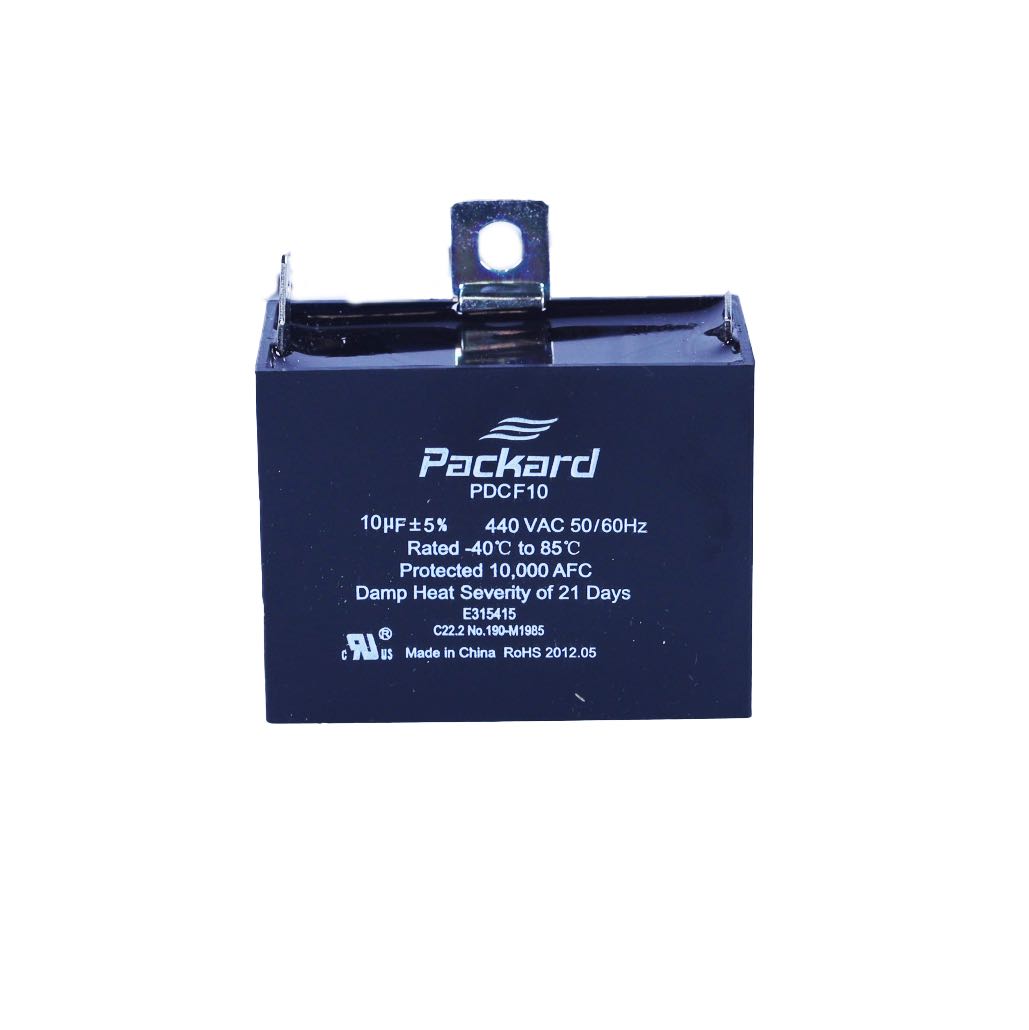

Packard PDCF10 HVAC Dry Motor Run Capacitor 10 MFD/UF 440 Volts
Dimensions: Height- 2.44" Length- 1.25" Width- 2.36" Add 1/2 inch to height for terminal length.
Rectangular in shape
There are 1/4" male blade quick connect terminals on the capacitor
Rated at 10 MFD/uf 440 Volts 50/60HZ
Features:
-
Heat tolerant, capacitance tolerance of +/-5%
-
Capacitors are constructed with Self-Healing Dielectric Metalized Polypropylene Film, with a Plastic ABS Case
-
Two sets of terminals and a mounting bracket
-
Rated to 185 Degrees (Fahrenheit), Protected to 10,000 AFC
-
UL recognized, RoHS compliant
