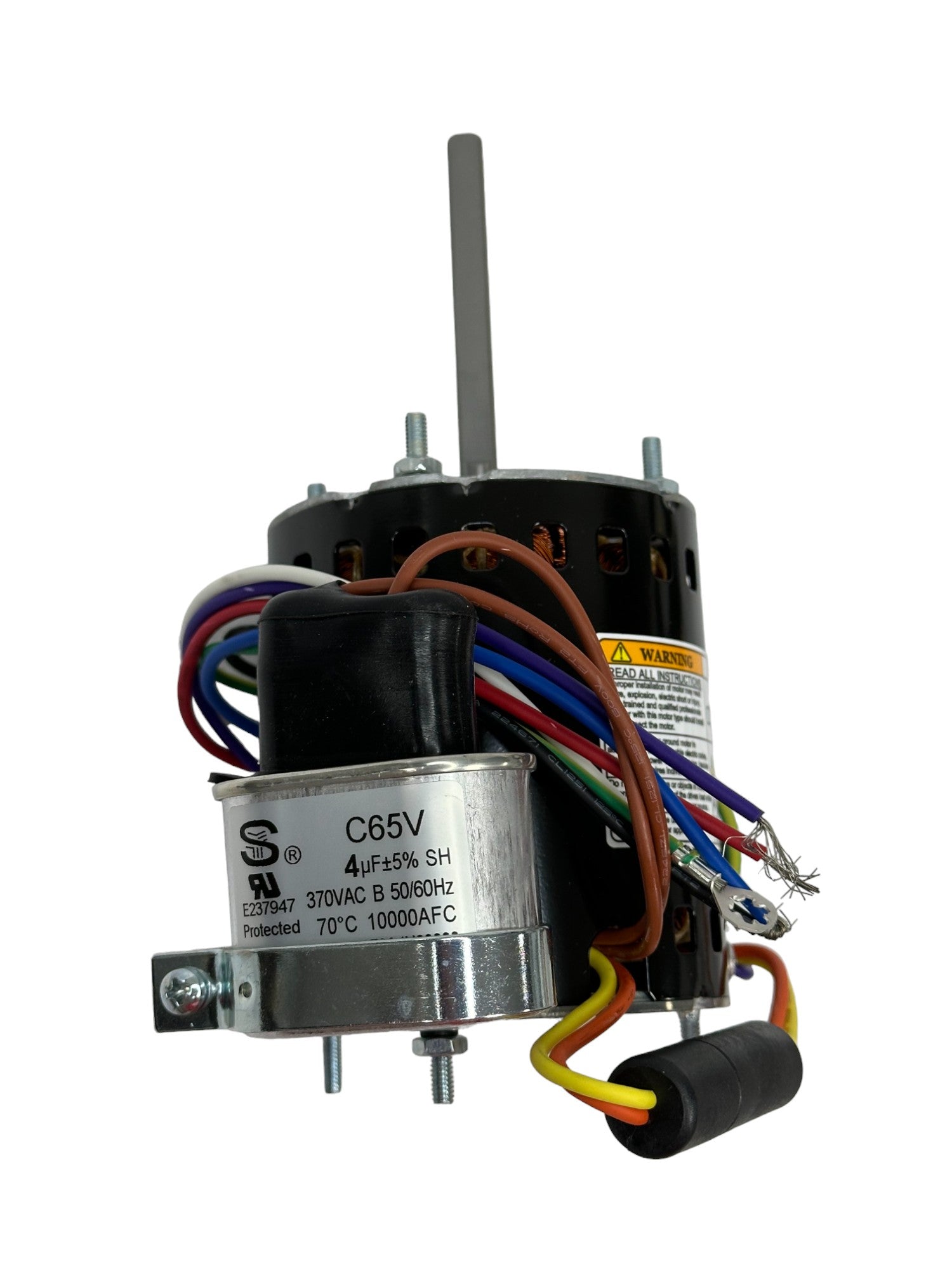

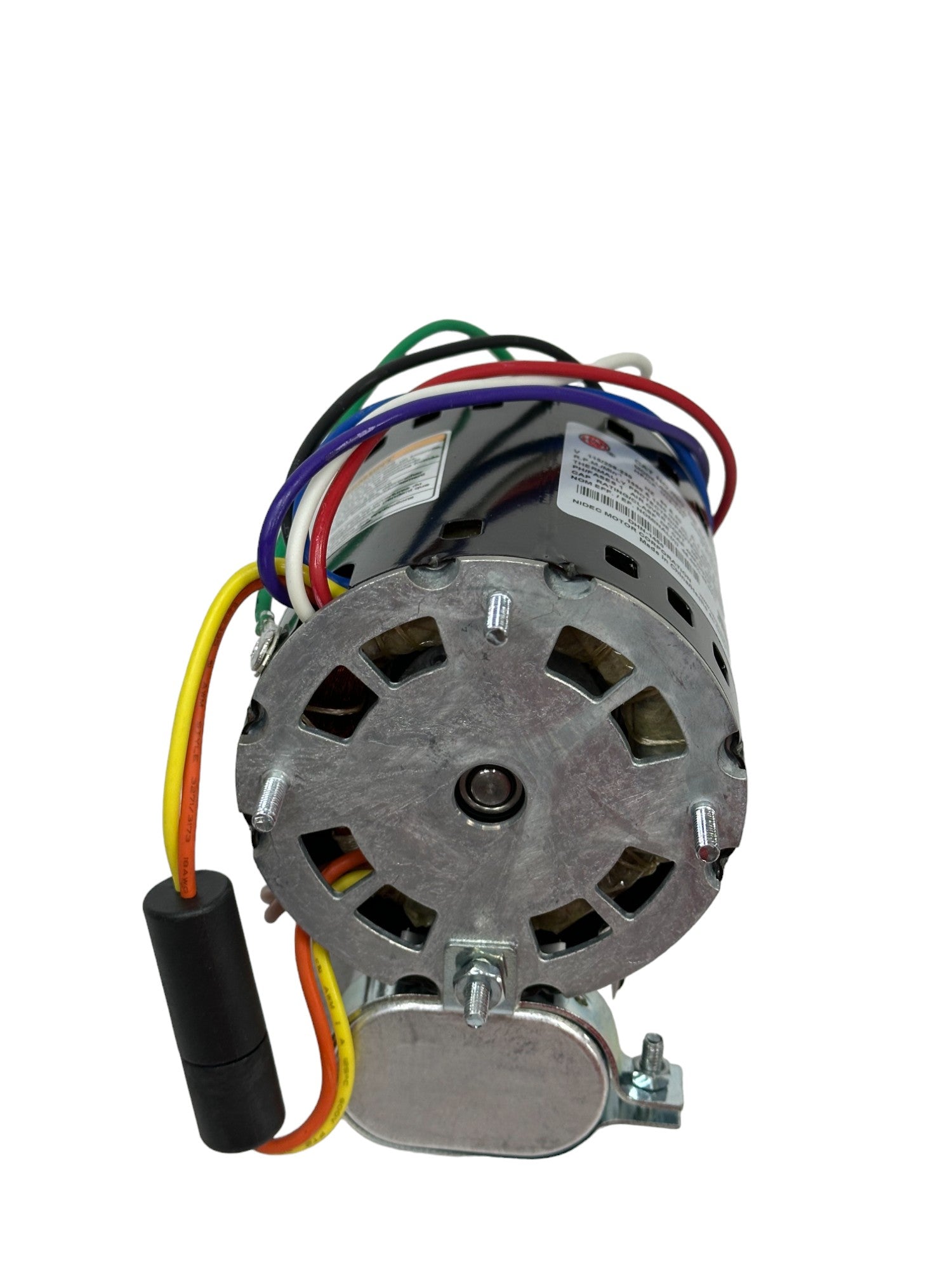

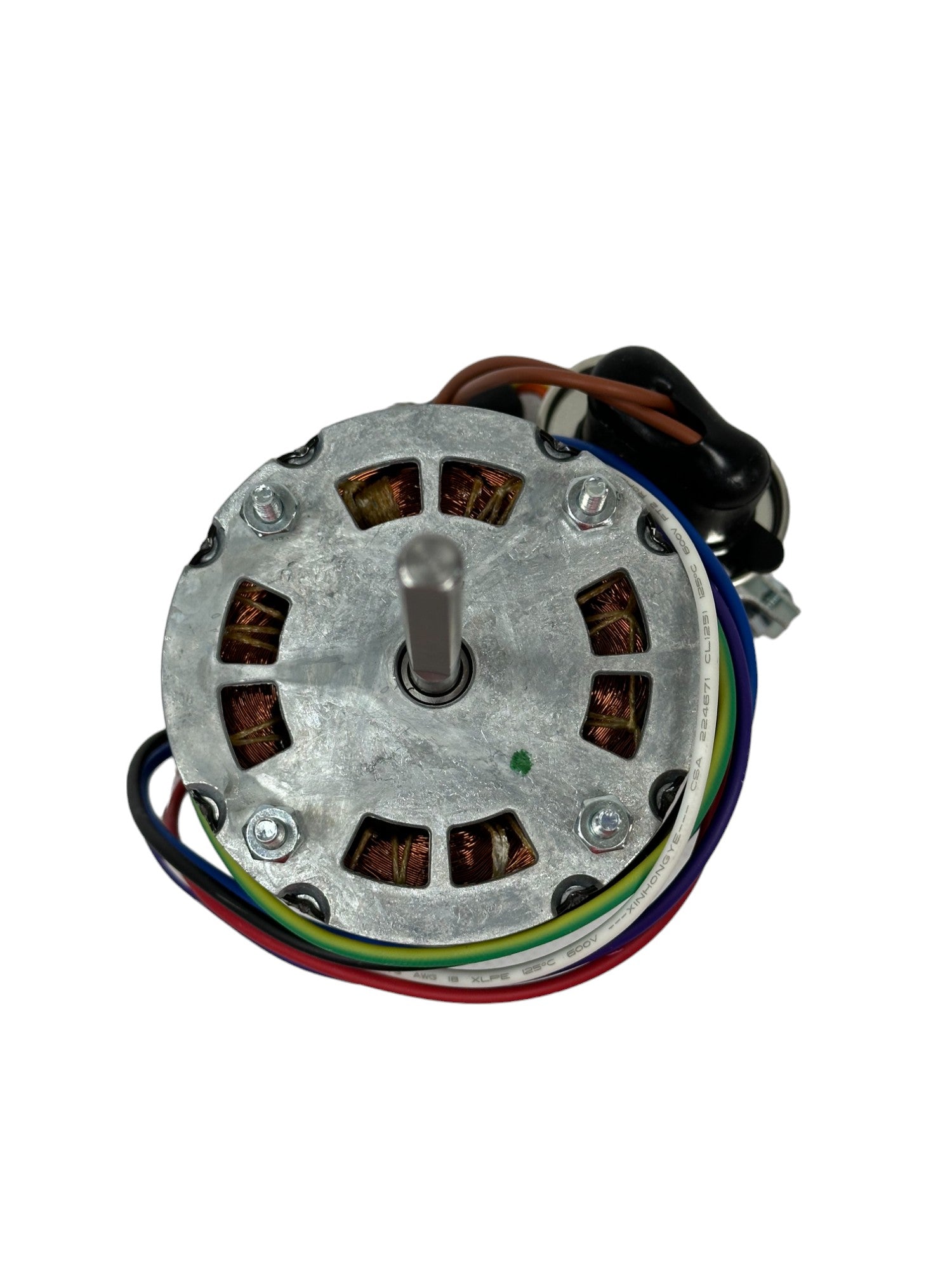

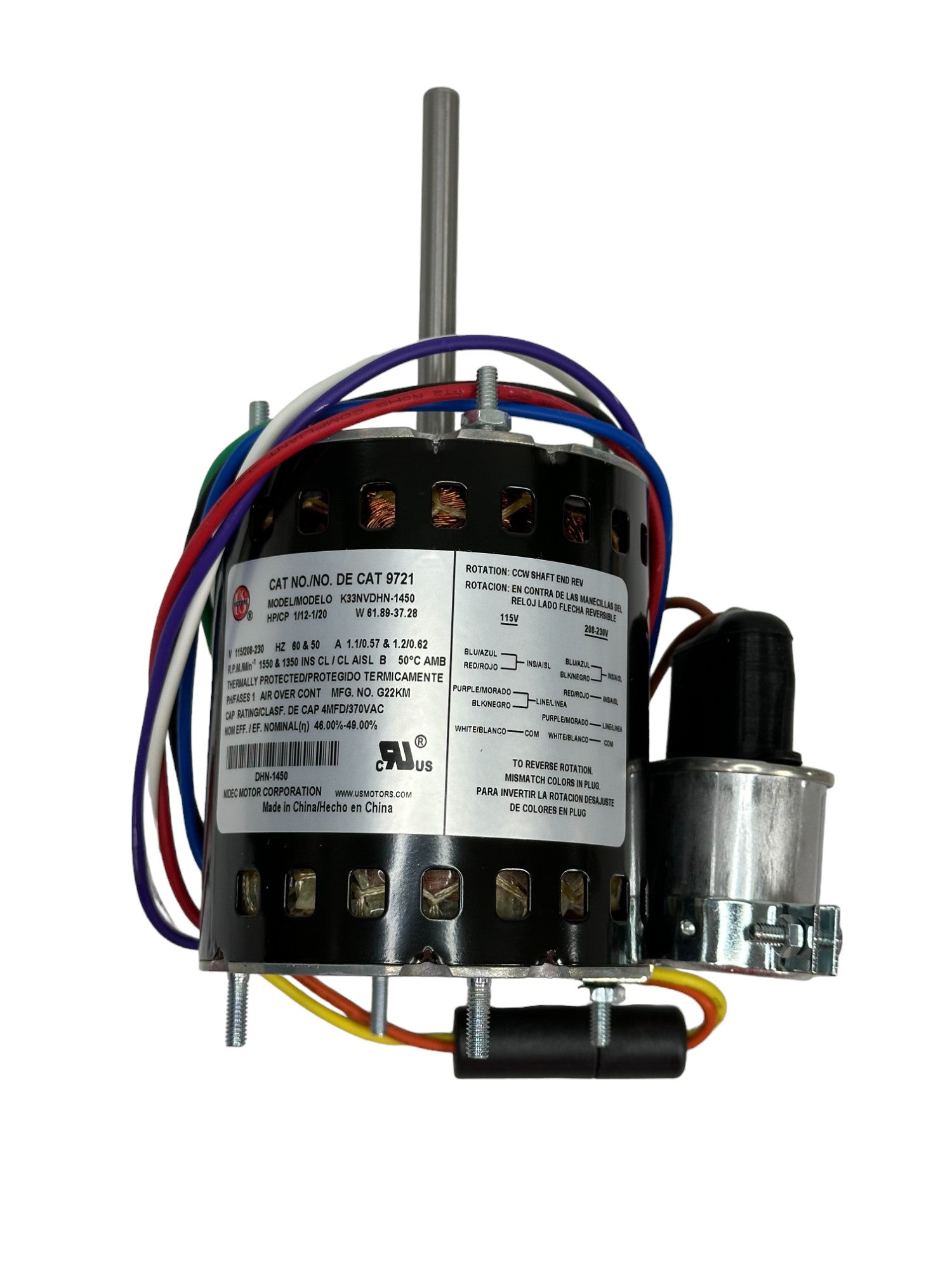

usmotors - 9721 3.3 Inch Diameter Motor 115/208-230 Volts 1550RPM
- REPLACES PACKARD 49101
- 3-IN-1 - Refrigeration Motor
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Keyed Shaft
- 21" Leads
- Extended Studs Shaft End and Opposite Shaft End, Belly Band
SPECIFICATIONS
Motor Voltage 115/208 - 230
Ambient Temp. 40°C
Amps 0.9/0.43/1.1/0.49
Brand Fasco
Bearings Ball
Country of Origin MEXICO
Diameter (In.) 3.3
Enclosure Open
H.P. 1/12
Hertz 50/60
Includes Reversing plug
Length Less Shaft (In.) 3-5/8
Material Steel
Motor Rotation Reversible
Motor Type PSC
Mounting Option Extended Studs
NEMA Frame 3.3
Overload Protection Thermally Protected
Phase Single
RPM 1550
Service Factor 1.00
Shaft Dimensions (In.) Diameter x Length 5/16 x 3-1/4
Speeds 1
UPC 815585020578
Voltage 115/208 - 230
Direct replacement for:
Bohn - 25309101
Emerson - 9656
Emerson - 9664
Heatcraft - 7071061
